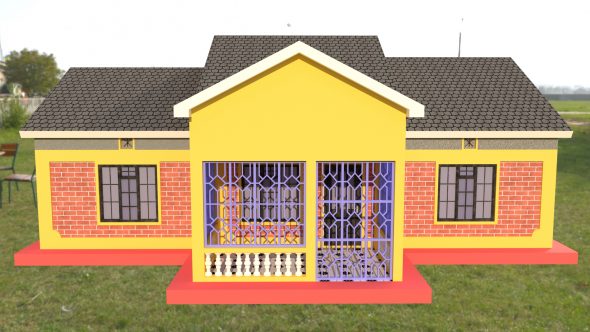

Simple 3 bedroom house plan

This is a plan for a simple 3-bedroom house. It’s an ideal design for people who need a simple but elegant design.

The floor layout has the following rooms;

1) A living room and dining area.

2) A kitchen.

3) A master bedroom.

4) Two other guest bedrooms.

5) Toilet and bathroom.

The full detailed architectural building plan comes with the following;

1) A floor layout with rooms labelled and dimensioned accordingly.

2) House elevations from the north, south, east and west. These elevations give details of how the house looks on all 4 sides.

3) Door and window schedule. This is the total number of doors and windows needed for the house and their respective dimensions or measurements.

4) Building section or simply a cross-section of the house. Cross sections show a view through the buildings framework from foundation to the peak of the roof.

5) House roofing design and sewer connection of the house. The roofing design shows how the roof of the house will look. The sewer connection shows the location of the inspection chambers and how they will carry waste water from different rooms of the house and direct it to the septic tank.

6) Client details section and general construction details of the house. The Clients details section allows the client to fill in their names in the space provided and also write the name of the location for the proposed development. The general construction details are just the guidelines to be followed when building the house.

The full detailed architectural building plan comes in printable format and it can easily be printed to get a hardcopy that will guide in the construction of the house. The plan has been well designed and it’s ready for use.

Feel free to check it out. Thank you!
